0.040”, 0.062” and 0.125” dia Mineral Insulated Thermocouple with Miniature Flat Pin Plug

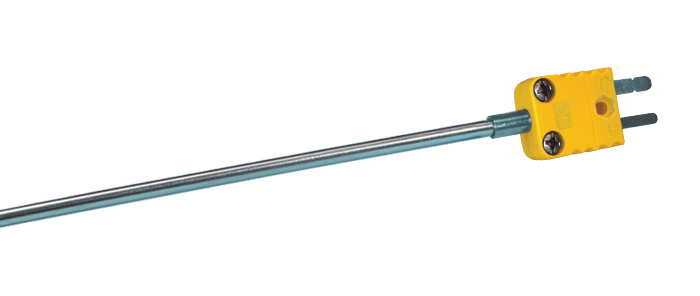

view larger image
These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A miniature flat pin plug is incorporated and is compatible with the miniature thermocouple jacks available in this catalog. A variety of extension cables and adjustable compression fittings can also be found in this catalog to complement this product.
  • Thermocouple types K, T, J or N available
  • Variety of lengths and diameters available
  • Various sheath materials available - see below
  • Insulated Junction
  • Terminated in a miniature thermocouple plug rated to 275ºF
  • The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
Type K - 316 Stainless Steel Sheath (1470ºF) and 304 Stainless Steel Sheath (1650ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
205-270 0.040" dia x 6" long – 304 St./St. $42.70 $38.90 $35.70 Add
205-273 0.040" dia x 12" long – 304 St./St. $43.60 $39.70 $36.40 Add
205-276 0.040" dia x 18" long – 304 St./St. $44.40 $40.60 $37.10 Add
205-279 0.040" dia x 36" long – 304 St./St. $47.40 $43.20 $39.50 Add
205-282 0.040" dia x 72" long – 304 St./St. $56.00 $50.00 $45.70 Add
205-285 0.062" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-288 0.062" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-291 0.062" dia x 18" long – 304 St./St. $33.20 $30.20 $27.70 Add
205-294 0.062" dia x 36" long – 304 St./St. $36.00 $32.90 $30.20 Add
205-297 0.062" dia x 72" long – 304 St./St. $44.20 $40.40 $36.90 Add
205-300 0.125" dia x 6" long – 304 St./St. $34.70 $31.70 $29.10 Add
205-303 0.125" dia x 12" long – 304 St./St. $35.70 $32.70 $29.80 Add
205-306 0.125" dia x 18" long – 304 St./St. $38.10 $34.80 $31.80 Add
205-309 0.125" dia x 36" long – 304 St./St. $42.50 $38.80 $35.60 Add
205-312 0.125" dia x 72" long – 304 St./St. $51.00 $46.20 $42.20 Add
524-104 Type K Miniature Jack $3.60 $3.40 $3.10 Add
Type K - Inconel 600® Sheath (2010ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
205-320 0.040" dia x 6" long – Inconel 600 $42.70 $38.90 $35.70 Add
205-323 0.040" dia x 12" long – Inconel 600 $43.60 $39.70 $36.40 Add
205-326 0.040" dia x 18" long – Inconel 600 $44.40 $40.60 $37.10 Add
205-329 0.040" dia x 36" long – Inconel 600 $47.40 $43.20 $39.50 Add
205-332 0.040" dia x 72" long – Inconel 600 $56.00 $50.00 $45.70 Add
205-335 0.062" dia x 6" long – Inconel 600 $31.60 $28.80 $26.40 Add
205-338 0.062" dia x 12" long – Inconel 600 $32.40 $29.70 $27.20 Add
205-341 0.062" dia x 18" long – Inconel 600 $33.20 $30.20 $27.70 Add
205-344 0.062" dia x 36" long – Inconel 600 $36.00 $32.90 $30.20 Add
205-347 0.062" dia x 72" long – Inconel 600 $44.20 $40.40 $36.90 Add
205-350 0.125" dia x 6" long – Inconel 600 $34.70 $31.70 $29.10 Add
205-353 0.125" dia x 12" long – Inconel 600 $35.70 $32.70 $29.80 Add
205-356 0.125" dia x 18" long – Inconel 600 $38.10 $34.80 $31.80 Add
205-359 0.125" dia x 36" long – Inconel 600 $42.50 $38.80 $35.60 Add
205-362 0.125" dia x 72" long – Inconel 600 $51.00 $46.20 $42.20 Add
524-104 Type K Miniature Jack $3.60 $3.40 $3.10 Add
Type T - 316 and 304 Stainless Steel Sheath (750ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
205-370 0.040" dia x 6" long – 304 St./St. $42.70 $38.90 $35.70 Add
205-373 0.040" dia x 12" long – 304 St./St. $43.60 $39.70 $36.40 Add
205-376 0.040" dia x 18" long – 304 St./St. $44.40 $40.60 $37.10 Add
205-379 0.040" dia x 36" long – 304 St./St. $47.40 $43.20 $39.50 Add
205-382 0.040" dia x 72" long – 304 St./St. $56.00 $50.00 $45.70 Add
205-385 0.062" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-388 0.062" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-391 0.062" dia x 18" long – 304 St./St. $33.20 $30.20 $27.70 Add
205-394 0.062" dia x 36" long – 304 St./St. $36.00 $32.90 $30.20 Add
205-397 0.062" dia x 72" long – 304 St./St. $44.20 $40.40 $36.90 Add
205-400 0.125" dia x 6" long – 304 St./St. $34.70 $31.70 $29.10 Add
205-403 0.125" dia x 12" long – 304 St./St. $35.70 $32.70 $29.80 Add
205-406 0.125" dia x 18" long – 304 St./St. $38.10 $34.80 $31.80 Add
205-409 0.125" dia x 36" long – 304 St./St. $42.50 $38.80 $35.60 Add
205-412 0.125" dia x 72" long – 304 St./St. $51.00 $46.20 $42.20 Add
524-110 Type T Miniature Jack $3.60 $3.40 $3.10 Add
Type J - 316 and 304 Stainless Steel Sheath (1250ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
205-420 0.040" dia x 6" long – 304 St./St. $42.70 $38.90 $35.70 Add
205-423 0.040" dia x 12" long – 304 St./St. $43.60 $39.70 $36.40 Add
205-426 0.040" dia x 18" long – 304 St./St. $44.40 $40.60 $37.10 Add
205-429 0.040" dia x 36" long – 304 St./St. $47.40 $43.20 $39.50 Add
205-432 0.040" dia x 72" long – 304 St./St. $56.00 $50.00 $45.70 Add
205-435 0.062" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-438 0.062" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-441 0.062" dia x 18" long – 304 St./St. $33.20 $30.20 $27.70 Add
205-444 0.062" dia x 36" long – 304 St./St. $36.00 $32.90 $30.20 Add
205-447 0.062" dia x 72" long – 304 St./St. $44.20 $40.40 $36.90 Add
205-450 0.125" dia x 6" long – 304 St./St. $34.70 $31.70 $29.10 Add
205-453 0.125" dia x 12" long – 304 St./St. $35.70 $32.70 $29.80 Add
205-456 0.125" dia x 18" long – 304 St./St. $38.10 $34.80 $31.80 Add
205-459 0.125" dia x 36" long – 304 St./St. $42.50 $38.80 $35.60 Add
205-462 0.125" dia x 72" long – 304 St./St. $51.00 $46.20 $42.20 Add
524-116 Type J Miniature Jack $3.60 $3.40 $3.10 Add
Type N - Nicrotherm DTM Sheath (2280ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
205-470 0.040" dia x 6" long – Nicrotherm D $46.70 $42.60 $39.10 Add
205-473 0.040" dia x 12" long – Nicrotherm D $51.00 $46.40 $42.40 Add
205-476 0.040" dia x 18" long – Nicrotherm D $53.00 $48.20 $44.10 Add
205-479 0.040" dia x 36" long – Nicrotherm D $58.00 $53.00 $47.70 Add
205-482 0.040" dia x 72" long – Nicrotherm D $70.00 $64.00 $58.00 Add
205-485 0.062" dia x 6" long – Nicrotherm D $35.10 $32.00 $29.40 Add
205-488 0.062" dia x 12" long – Nicrotherm D $39.10 $35.70 $32.80 Add
205-491 0.062" dia x 18" long – Nicrotherm D $42.90 $39.20 $35.90 Add
205-494 0.062" dia x 36" long – Nicrotherm D $47.50 $43.40 $39.60 Add
205-497 0.062" dia x 72" long – Nicrotherm D $61.00 $56.00 $51.00 Add
205-500 0.125" dia x 6" long – Nicrotherm D $38.10 $34.80 $31.80 Add
205-503 0.125" dia x 12" long – Nicrotherm D $45.40 $41.50 $38.00 Add
205-506 0.125" dia x 18" long – Nicrotherm D $49.40 $45.10 $41.30 Add
205-509 0.125" dia x 36" long – Nicrotherm D $59.00 $54.00 $48.80 Add
205-512 0.125" dia x 72" long – Nicrotherm D $77.00 $70.00 $64.00 Add
524-122 Type N Miniature Jack $3.60 $3.40 $3.10 Add
