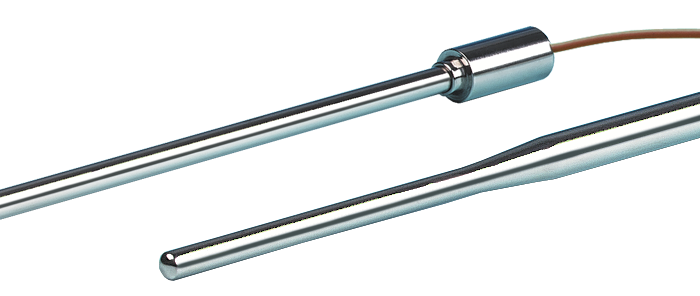

Swaged Mineral Insulated Thermocouple with Potting Adaptor
A unique fast response, high strength, low cost solution to many problematical temperature measurement applications. Rugged large diameter with a low thermal mass reduced tip provides for incredibly fast response. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A potting adaptor which allows the transition to 36” PVC insulated leads is supplied as standard. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product. Do remember to select compression fittings for the larger diameter on the sensor.
- Thermocouple types K, T, J or N available
- Variety of lengths and diameters available
- Sheath Material: Type K - Inconel 600®, Type T or J - 304 Stainless Steel Sheath and Type N which has a Nicrotherm DTM sheath
- The swaged tip part of the sensor is approximately 2” long. This dimension is nominal due to the nature of swaging.
- The operating range of these sensors is shown in the order code boxes
- Insulated Junction
- Leads: 36” PVC insulated
- Terminated in a potting adaptor 0.5” diameter x 1.14” long rated to 220ºF
- The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
