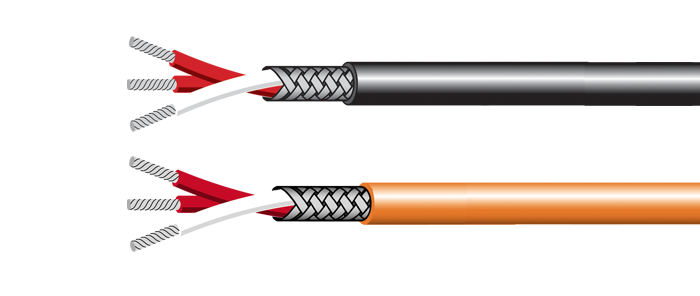

PFA Insulated RTD Extension Wire 24 AWG Twisted Shielded Construction
These PFA insulated RTD extension cables are supplied in either 25, 50, 100 or 200 metre lengths. They are available with two, three, four or six cores of 24 AWG stranded copper conductors. Cores are insulated with a PFA, twisted together with a tinned copper wire braid screen with an overall PFA sheath.
- 3 or 6 cores of 24 AWG conductors, PFA insulated
- Nickel plated copper braid with overall PFA sheath
- Temperature range: -100°F to +480°F
Core colour codes:-
3 core: 2 cores red and 1 core white
6 core: 4 cores red and 2 cores white
Outer sheath colour: Orange or black
- Available in a variety of lengths
- Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers
The following types are available:
