Fiberglass Insulated RTD Extension Wire 24 AWG with Stainless Steel Braid

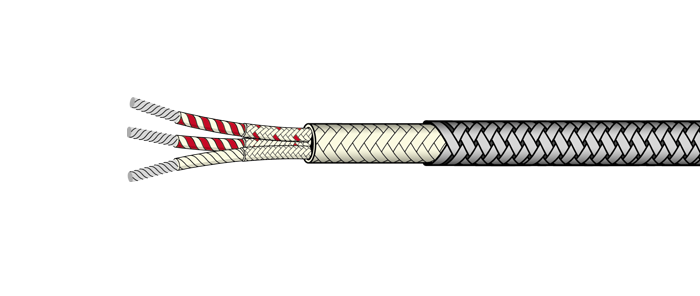

These stainless steel braided fiberglass insulated RTD extension cables are supplied in either 25, 50, 100 or 200 metre lengths. They are available with two, three, four or six cores of 24 AWG stranded copper conductors. Cores are double glass lapped, glass fiber braided and varnished and bunched together, glass fiber braided overall and varnish impregnated. Stainless steel braid overall.
- 3 or 6 cores of 24 AWG conductors, double glass lapped
- Stainless steel braid for mechanical protection
- Temperature range: up to 870°F (short term up to 1000°F)
Core colour codes:-
3 core: 2 cores red and 1 core white
6 core: 4 cores red and 2 cores white
- Available in a variety of lengths
- Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers
The following types are available:
