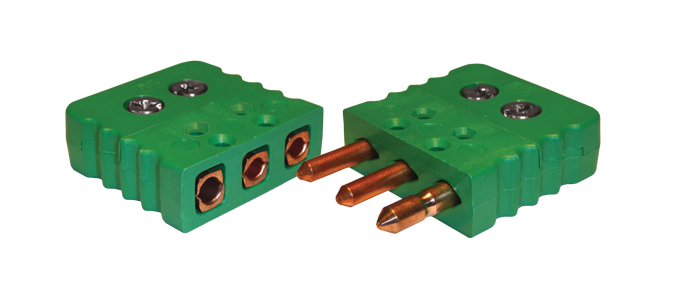

Standard 3 Pin Thermocouple Connectors
These 3-pin round hollow pin standard connectors are ideal for connecting thermocouple sensors and extension or compensating cables with a screen to each other. The pins are polarized to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -58ºF and +410ºF (-50ºC and +210ºC).
- 3 pin version - ideal for connecting cables with a screen
- Body: Thermoplastic compound rated -58ºF to +410ºF (-50ºC to +210ºC)
- Suitable for wire diameters from 32 AWG up to 12 AWG (0.2mm to 2.0mm dia)
- Color coded to ANSI MC96.1-1982
- Dimensions: Plug 1.4” x 1.44” x 0.5” (LxWxD) with 0.59” long pins. Socket 1.4” x 1.44” x 0.5” (LxWxD)
- Manufactured by the TC Group
The following types are available:
