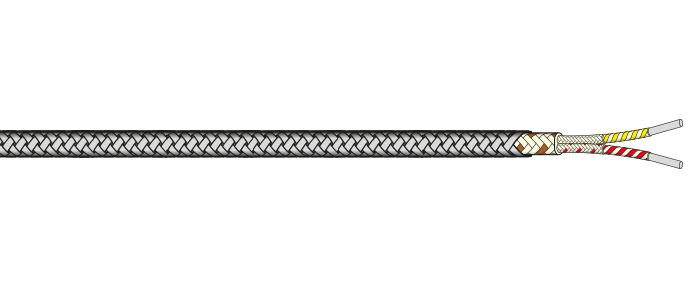

Stainless Steel Braided Fiberglass Insulated Thermocouple Cable - Parallel Construction 890ºF

We supply 24 AWG thermocouple grade cable in 100, 200, 500, or 1000 ft lengths, available in Type K, T, J or N, in accordance with ANSI MC96.1. Each conductor is manufactured from the same alloys as the corresponding thermocouple type, insulated with fiberglass, and laid in a parallel construction with a fiberglass jacket with a stainless steel braiding overall. Thermocouple grade conductors are intended for use where the cable may be exposed to elevated temperatures and provide accurate EMF output over the full temperature range of the thermocouple type. All cables meet ANSI MC96.1 requirements for thermocouple grade wire, with insulation color coding in accordance with ANSI MC96.1-1982, as shown below.

• 24 AWG solid parallel construction and overall sheathed construction
• Insulation: Fiberglass with stainless steel braiding rated to 890ºF
• Color coded :-
  Type K: brown outer sheath, yellow positive wire and red negative wire
  Type T: brown outer sheath, blue positive wire and red negative wire
  Type J: brown outer sheath, white positive wire and red negative wire
  Type N: brown outer sheath, orange positive wire and red negative wire
• Available in a variety of lengths
